WEAR BUTTONS

Wear Buttons are designed specifically for easy and adaptive installation onto a wide range of wear problem areas.Very easy to use, no pre or post heating when welding. Available in diameters from 60mm up to 150mm. Develop your own layout and pattern to suit your particular wear protection solution.

Wear Buttons are often used to prevent wear in localised trouble spots on heavy earth moving equipment, particularly on construction and mining buckets. Specific applications are:

• Quick fix for localized wear trouble areas.

• Transfer points

• Mining and construction buckets

• Ground engaging tools

Perfect solution for ground engaging applications as on adaptor teech, shovels, buckets, heavy earth moving equipment etc. Can well use them in conjunction with Chocky Bars, Wear Plates or individually to provide protection or security under the toughest impact and wear abrasion circumstances.

WEAR DONUTS

They are often effectively used on a variety of buckets, loaders, excavators, earth moving equipment, draglines and bolt protection etc. with any layout of pattern designed to suit your particular wear area, providing maximum protection and security while minimizing the effects of heavy impact.

Wear Donuts can be made to different sizes as required

ITEM NO.	Size(mm)	Dimension				N.W(kg)
ITEM NO.	Size(mm)	A	B	C	D	N.W(kg)
WB 60	dia.60x27	60	27	17	10	0.7
WB 75	dia.75x27	75	27	17	10	0.9
WB 90	dia.90x27	90	27	17	10	1.4
WB 110	dia.110x32	110	32	20	12	2.1
WB 115	dia.115x32	115	32	20	12	2.5
WB 150	dia.150x41	150	41	25	16	5.7

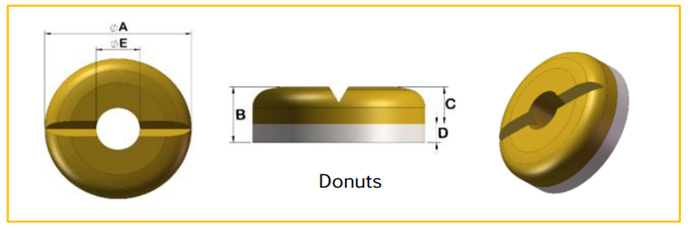

ITEM NO.	Size(mm)	Dimension					N.W(kg)
ITEM NO.	Size(mm)	A	B	C	D	E	N.W(kg)
WD 75	dia.75x25	75	25	17	8	25	0.7
WD 100A	dia.100x25	100	25	17	8	50	1
WD 100B	dia.100x32	100	32	24	8	70	1
WD 130	dia.130x23	130	23	15	8	80	1.3
WD 148	dia.148x35	148	35	25	10	108	2.2
